NEW Faro B75 Dental and Surgical LED Light
Order Now!

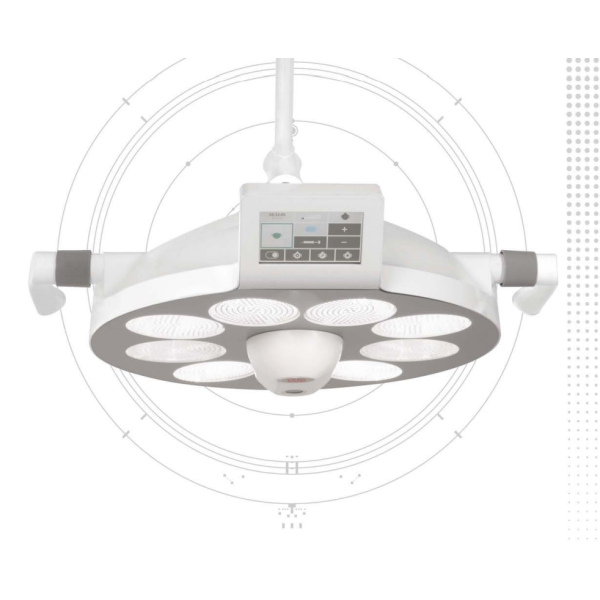

B75 THE DENTAL LAMP
Video: https://youtu.be/LHCOjqoSmEM
MAXIMUM PERFORMANCE AND COMFORT TO WORK WITH BOTH SURGICAL AND DENTAL SETTINGS
B75 is the breakthrough in dental lightening: a dental lamp that integrates surgical and dental features in one single device.
B75 lamp is equipped with two independent LED spots, the round one for surgery, with an intensity of illumination higher than 110.000 LUX, and the elliptical one, for dental use and it comes with an exclusive project of reflected light able to ensure the highest light quality, premium performance and visual comfort.
Conceived and realized with materials selected to guarantee light weight, durability and easy cleaning following the principles of the circular economy to add the value of sustainability
Universal Ceiling and Unit mount system
Included 48VDC Transformer (with medical power supply 110-240VAC 50/60Hz)
SKU
DW1494
With B75, FARO provides to dentists a scialytic lamp designed for the dental field which defines a new way to manage the activities of the whole clinic, through a single device, in the same place, always connected and ready to use.
b75 IS THE VANGUARD OF ILLUMINATION IN DENTISTRY
dental mode
- ELLIPTIC AL SPOT 200X100 MM
- UP TO 50.000 LUX AT 700MM DISTANCE
- CRI 98
- DIMMABLE LIGHT INTENSITY
- 4 COLOR TEMPERATURES WITH COMPOSAVE MODE
- 5700k, 5000k, 4000k & 2700k
THE SWITCH FROM SURGICAL MODE TO THE DENTAL ONE AND VICE-VERSA
IS MANAGED BY A 4.3 INCHES TOUCHSCREEN IPS COLOR DISPLAY, EQUIPPED WITH A
DIGITAL PROPRIETARY INTERFACE, EASY AND USER FRIENDLY.
SURGICAL MODE
- CIRCUL AR SPOT 250 MM AT 1M DISTANCE
- UP TO 110.000 LUX AT 1 M DISTANCE
- MAXIMUM ILLUMINATION 160.000 LUX AT 800MM
- CRI 98
- DIMMABLE LIGHT INTENSITY
- FIXED COLOR TEMPERATURE AND COMPOSAVE MODE
- 5000k & 2700k
PRODUCT SPECIFICATIONS
CHARACTERISTICS | DOWNLOAD
CHARACTERISTICS | SURGICAL | DENTAL | ||||
|---|---|---|---|---|---|---|
COLOR TEMPERATURE (K) | 5000K | COMPOSAVE | 4000K | 5000K | 5700K | COMPOSAVE |
POWER SUPPLY | 48VDC (with medical power supply 110-240VAC 50/60Hz) | |||||
MAX. ABSORBED POWER | 60 Va • (60 VA – 74VA)* | 24 VA • (24VA – 40VA)* | ||||
LIGHT SPOT DIMENSION | 250 | 200X100 | ||||
MAX. INTENSITY (LUX) | 110.000 (at 1m) 160.000 (at 800mm) | 11.000 (at 1m) | 50.000 (at 700mm) | 11.000 (at 700mm) | ||
MIN. INTENSITY (LUX) | 12.000 (at 1 m) | 6.000 (at 700 mm) | ||||
D10 AT 1 M | Ø 220mm | |||||
D50 AT 1 M | Ø 150mm | |||||
CRI | 98 | |||||
R9 | 97 | |||||
Rf | 98 | |||||
Rg | 102 | |||||
EXTERNAL DIAMETER OF THE HEAD | 445 mm | |||||
ROTATION SYSTEM | 3° Asse | |||||
HEAD ROTATION > 360° | ● | |||||
VERSION WITH DIGITAL 4K CAMERA OR ARRANGED FOR IT | ● | |||||
COLOUR TOUCH DISPLAY | ● | |||||
OPTICAL SENSOR | ● | |||||
HEAD WEIGHT (WITHOUT CAM) | 5.4 kg | |||||
HEAD WEIGHT (WITH CAM) | 5.6 kg | |||||
LAMP WEIGHT (HEAD + ARM) | 12.5 kg c.a | |||||
LAMP WEIGHT WITH CEILING APPLICATION | 25 kg c.a | |||||
- The technical data indicated are typical values subject to tolerance More information in the user manual
* Values refer to the THEIATECH® version
